HP EliteBook 8560w

This page describes how to run coreboot on the HP EliteBook 8560w.

Required proprietary blobs

Intel Firmware Descriptor, ME and GbE firmware
EC: please read HP Laptops with KBC1126 Embedded Controller

Flashing instructions

When running vendor firmware, external flashing is needed.

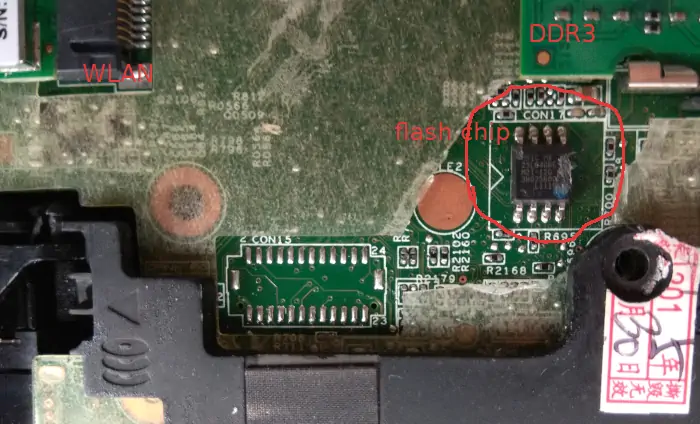

HP EliteBook 8560w has an 8MiB SOIC-8 flash chip on the bottom of the mainboard. You just need to remove the service cover, and use an SOIC-8 clip to read and flash the chip.

+---------------------+------------+
| Type                | Value      |
+=====================+============+
| Socketed flash      | no         |
+---------------------+------------+
| Model               | MX25L6406E |
+---------------------+------------+
| Size                | 8 MiB      |
+---------------------+------------+
| Package             | SOIC-8     |
+---------------------+------------+
| Write protection    | no         |
+---------------------+------------+
| Dual BIOS feature   | no         |
+---------------------+------------+
| In circuit flashing | yes        |
+---------------------+------------+
| Internal flashing   | yes        |
+---------------------+------------+

Working

i7-2720QM, 8G+8G
Arch Linux boot from SeaBIOS payload
EHCI debug: the port is beside the eSATA port
SATA
eSATA
USB2 and USB3
keyboard
Gigabit Ethernet
WLAN
WWAN
VGA and DisplayPort
audio
EC ACPI
Using me_cleaner
dock: PS/2 keyboard, USB, DisplayPort
TPM
S3 suspend/resume

Technology

+------------------+--------------------------------------------------+
| Northbridge      | :doc:`../../northbridge/intel/sandybridge/index` |
+------------------+--------------------------------------------------+
| Southbridge      | bd82x6x                                          |
+------------------+--------------------------------------------------+
| CPU              | model_206ax                                      |
+------------------+--------------------------------------------------+
| Super I/O        | SMSC LPC47n217                                   |
+------------------+--------------------------------------------------+
| EC               | SMSC KBC1126                                     |
+------------------+--------------------------------------------------+
| Coprocessor      | Intel Management Engine                          |
+------------------+--------------------------------------------------+
